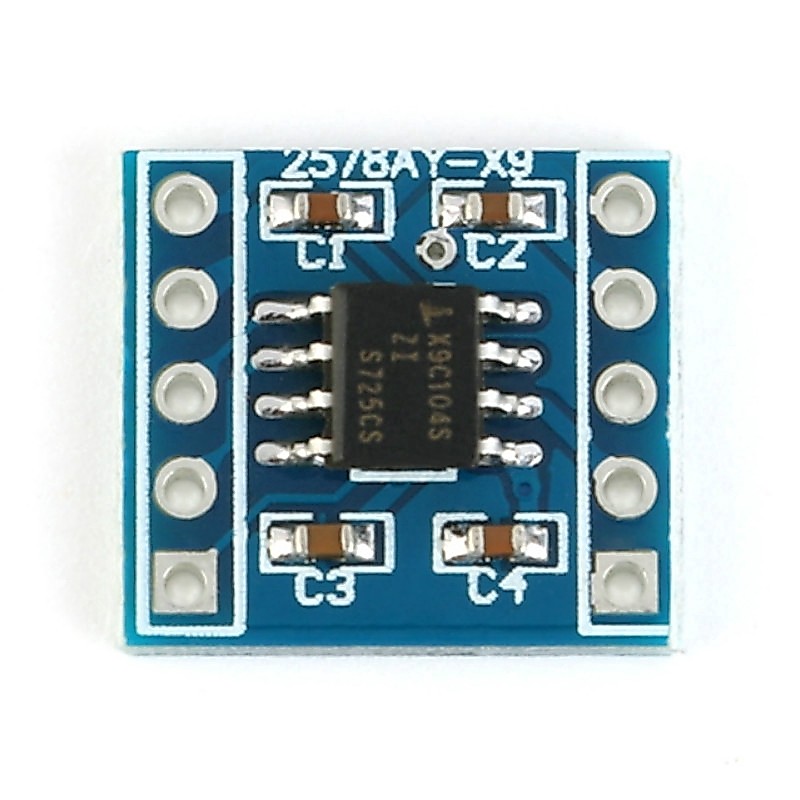

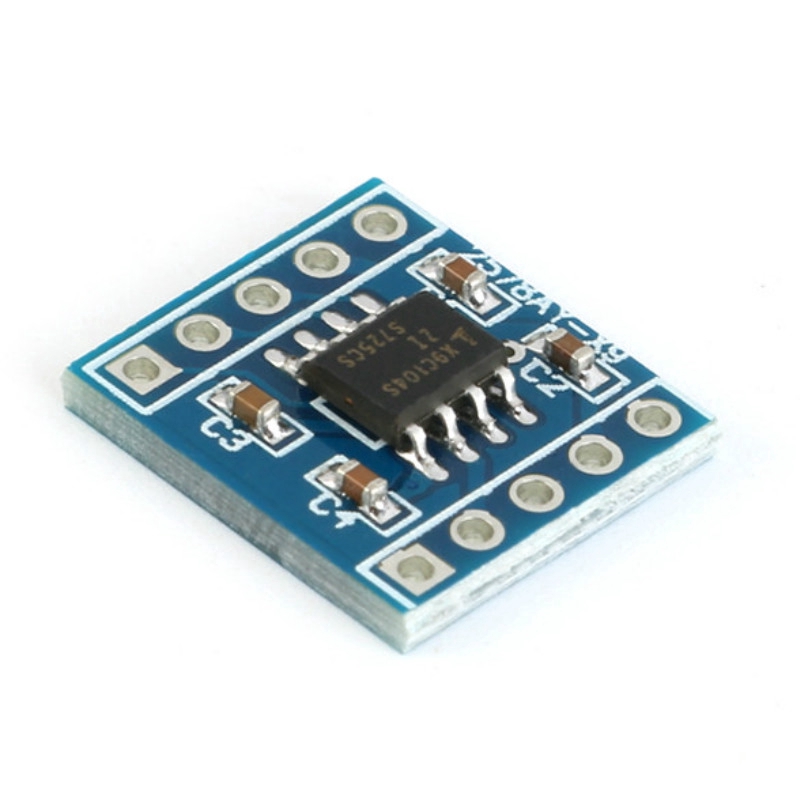

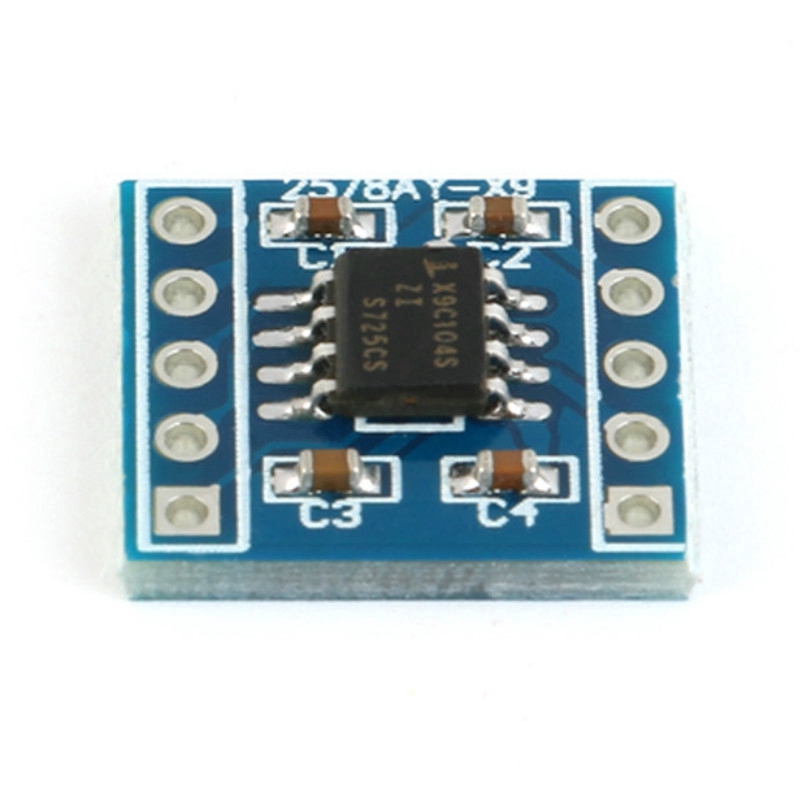

X9C104 Digital Potentiometer Module For Arduino Board Module Programmable Resistor to Adjust the Bridge Balance

Performance Parameter

Working voltage: 5V

Total resistance: 100KΩ

Terminal voltage: -5~5V

Number of taps: 100

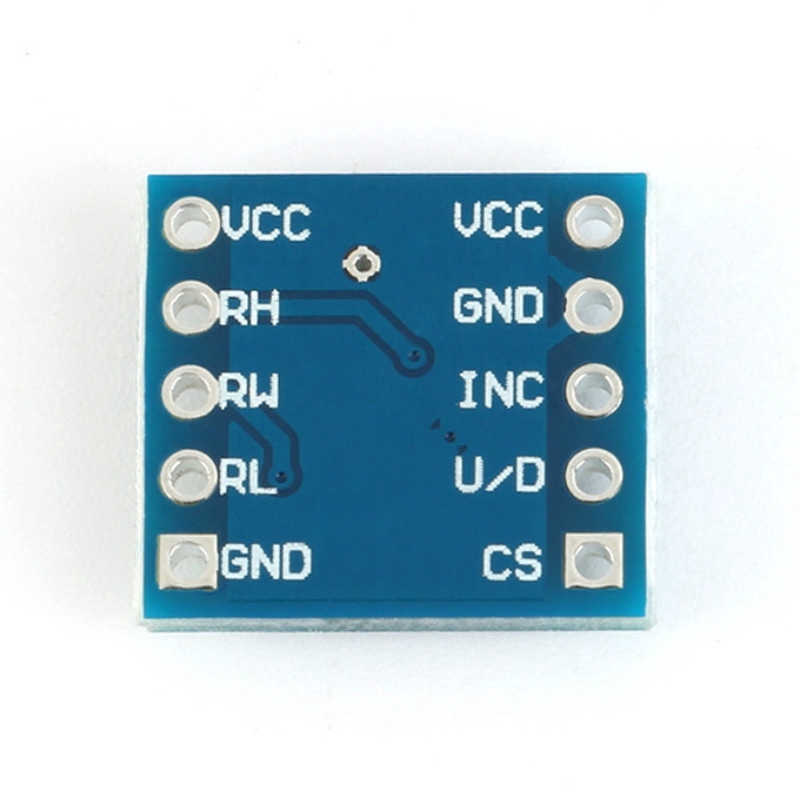

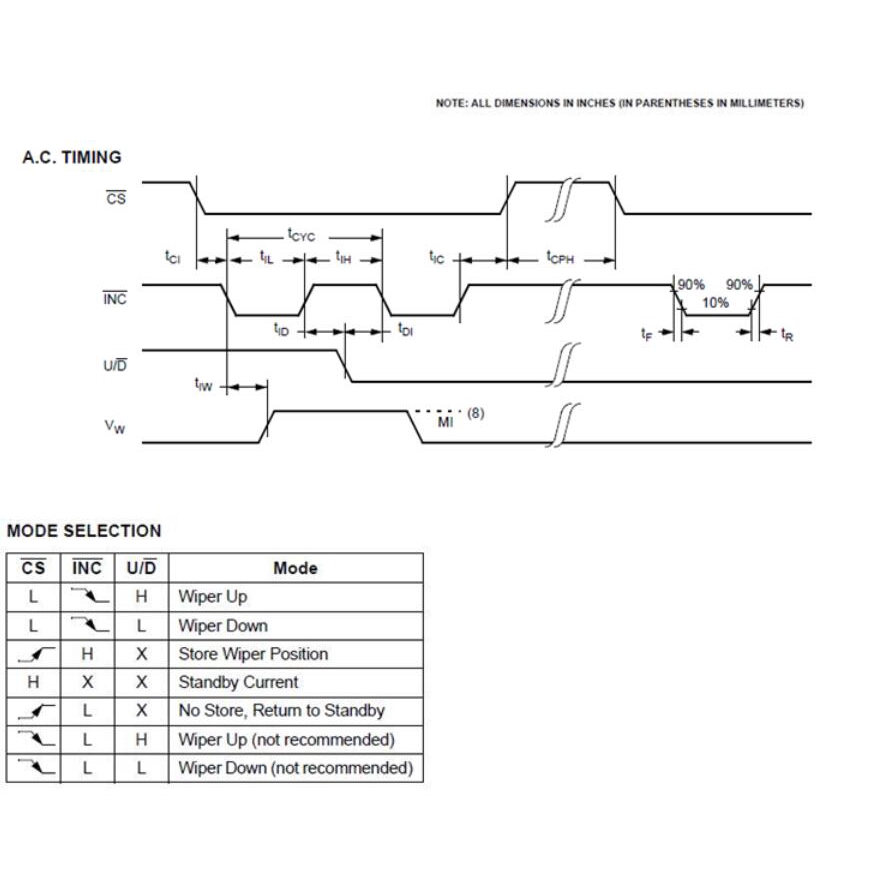

Interface mode: CS, U/D, INC

Resistance increase mode: linear

Working current: 3mA

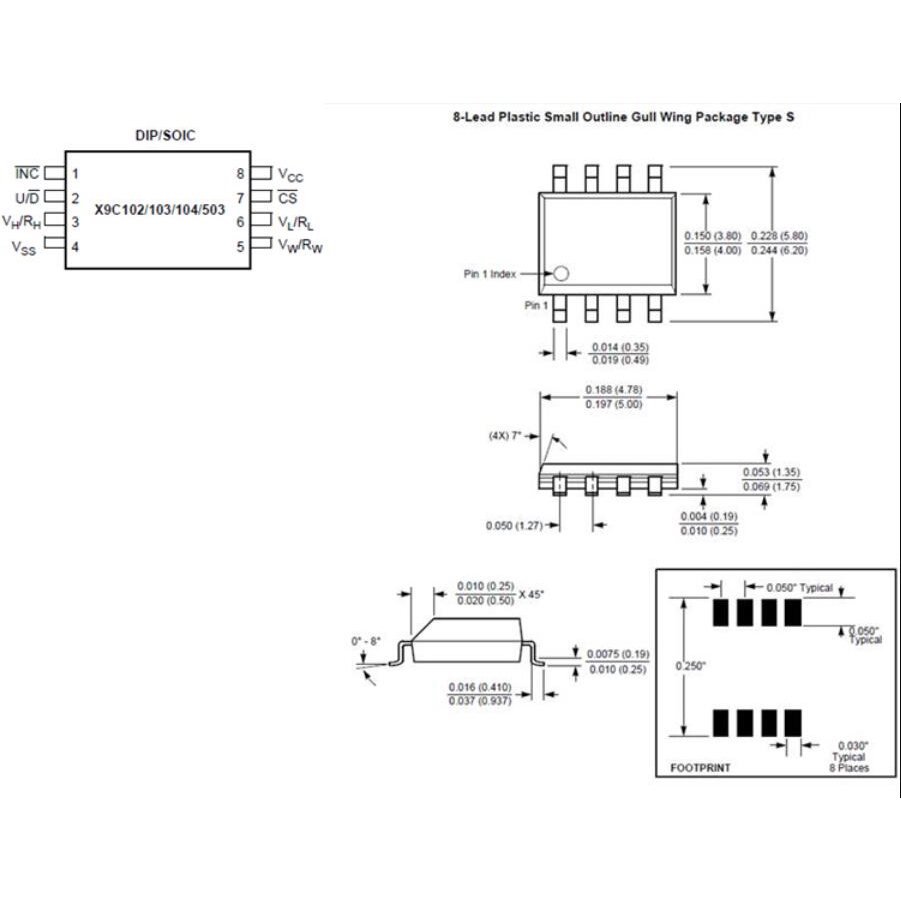

Package: 8SOIC

Temperature: -40~+85 °C

Tap position is automatically saved when power is off

Functional Description

Temperature compensation function, resistance error between terminals: ±20%

Sliding position data can be saved for a long time, 100 years

Higher resistance resolution: 1%

The changes in the digital potentiometer are stepped or incremental, and the resistance changes linearly.

E.g

X9C104, with a resistance range of 40R-100K, is divided into 100 steps, and the increment of each tap point is 1010R.
