gy - 68 bmp 180 gy 68 GY-68 BMP180 GY68 โมดูลเซ็นเซอร์ความดันดิจิตอลสําหรับ arduino

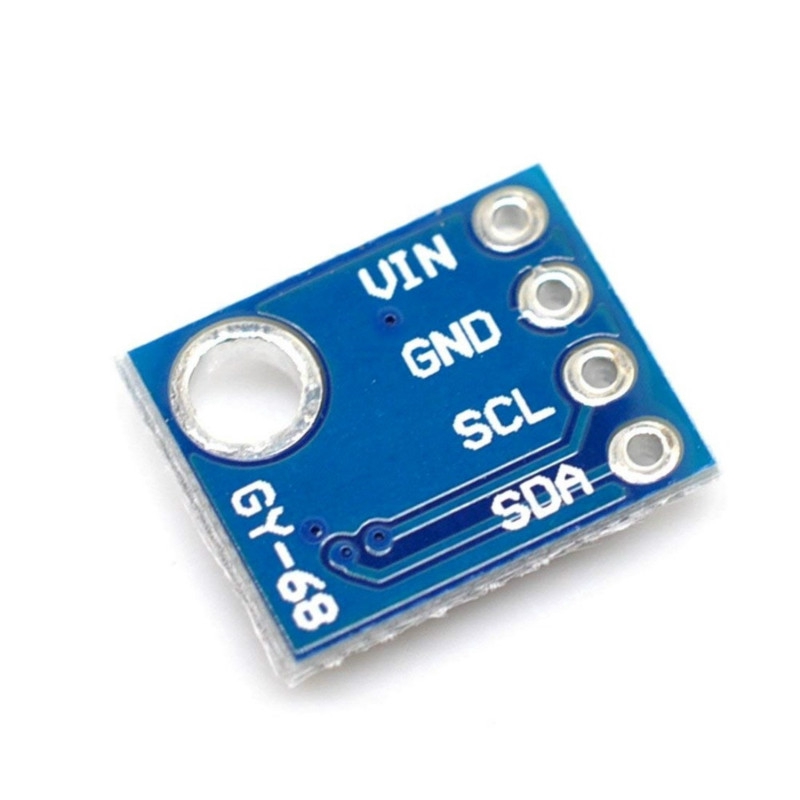

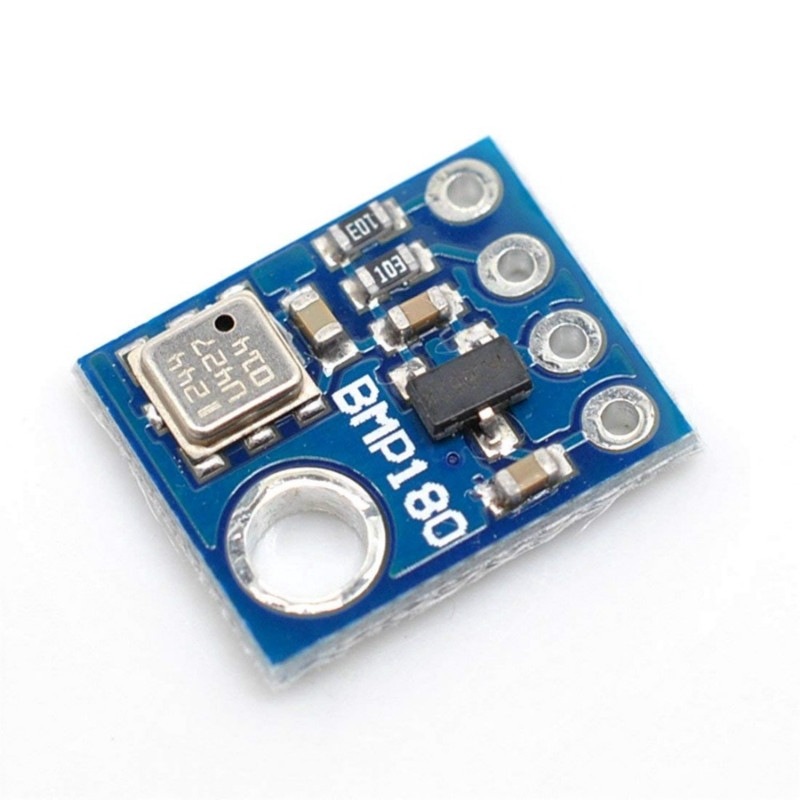

GY-68 BMP180 GY68 Digital Barometric Pressure Sensor Board Module compatible with BMP085 For Arduino

To Specifications / Special Features :

BMP180 is a high precision , small size , ultra-low power pressure sensor can be used in mobile devices

Its performance, absolute accuracy can reach the lowest 0.03hPa, and the power consumption is very low, only 3μA

BMP180 using powerful 8-pin ceramic leadless chip carrier (LCC) ultra-thin package , can be connected directly with a variety of microprocessor via the I2C bus

Main features:

Pressure range : 300 ~ 1100hPa ( altitude 9000 m ~ -500 m )

Power supply voltage : 1.8V ~ 3.6V (VDDA), 1.62V ~ 3.6V (VDDD)

LCC8 package : package leadless ceramic carrier (LCC)

Size : 3.6mmx3.8x0.93mm

Low power consumption : 5μA, in standard mode

High precision: low-power mode , the resolution is 0.06hPa (0.5 meters)

High linearity mode , the resolution is 0.03hPa (0.25 meters)

With temperature output

I2C Interface

Temperature compensation

Lead-f...
