Relay low level trigger one 1 channel แผ่นบอร์ดโมดูลเชื่อมต่อสําหรับ pic avr dsp arm mcu Arduino

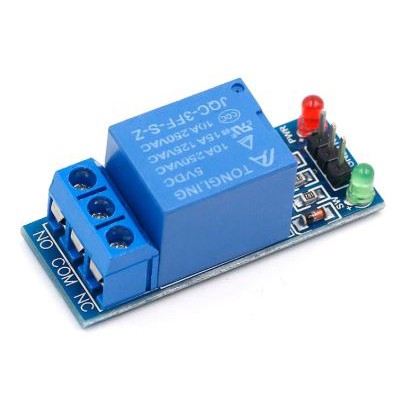

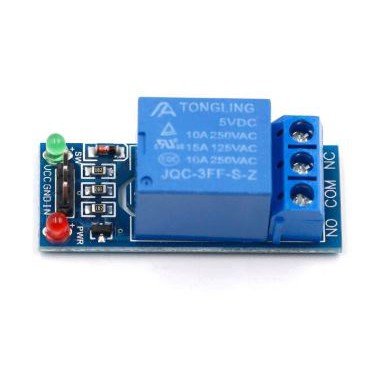

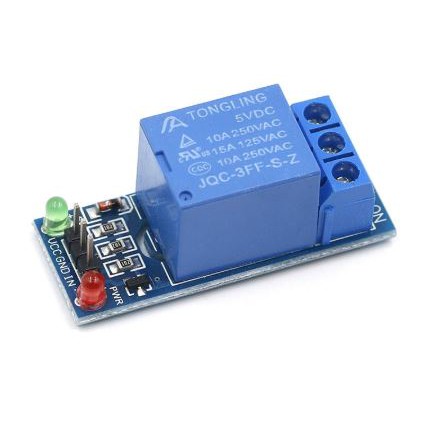

5V low level trigger One 1 Channel Relay Module interface Board Shield For PIC AVR DSP ARM MCU for Arduino

Features:

1. With isolation groove in control area and load area.

2. With power and relay action indication, bright when connect and go off when disconnects.

3. When there is a signal in signal input, public side and common side will breakover.

4. It can be not only used as a microcontroller development board module, but also as a home appliance control.

5. It can not only control the DC or AC signal, but the 220V AC load.

6. With a permanent open and close vents contact.

7. It is convenient to connect with blue KF301 terminal access control cable.

Specification:

1. VCC: Power interface ,5V

2. GND: Ground

3. IN: Control interface .Drive Current at least 4mA

4. COM: Control circuit ground ,Connect to GND

5. Size: approx. 41 x 16 x 16mm/ 1.61 x 0.62 x 0.62''

6. Weight: approx. 12g
