Ky - 032 4 Pin Ir อินฟราเรด Obstacle Avoidance Sensor โมดูล Diy สมาร์ทรถยนต์ Ky 032 Ky-032สําหรับ Arduino

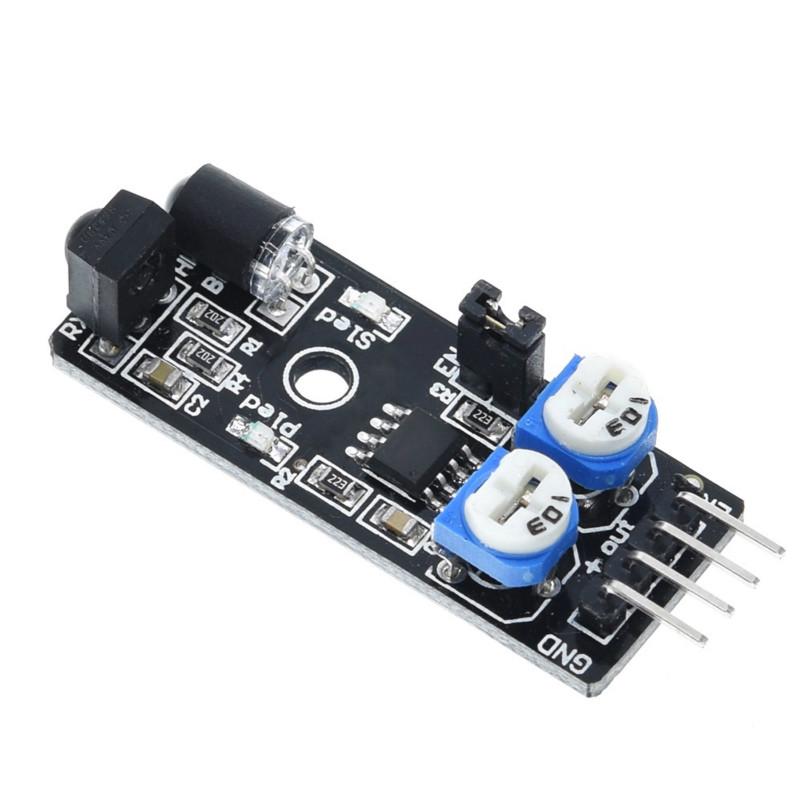

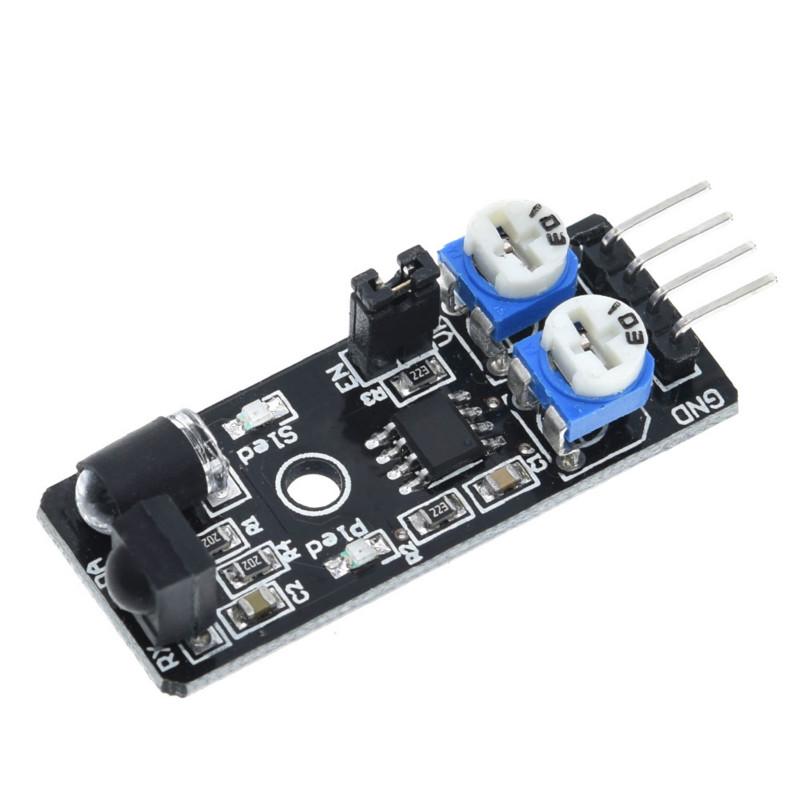

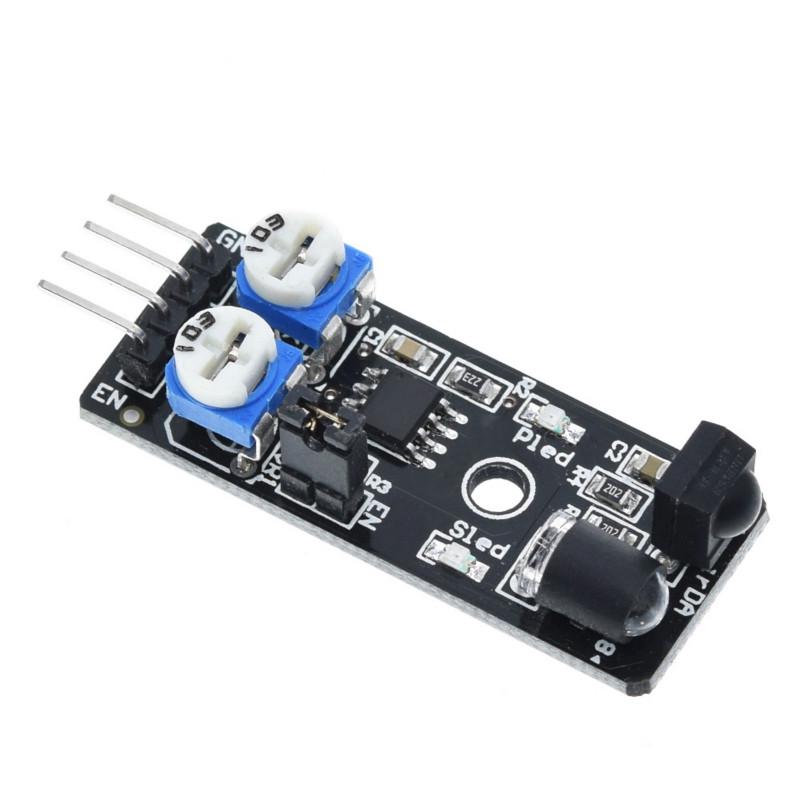

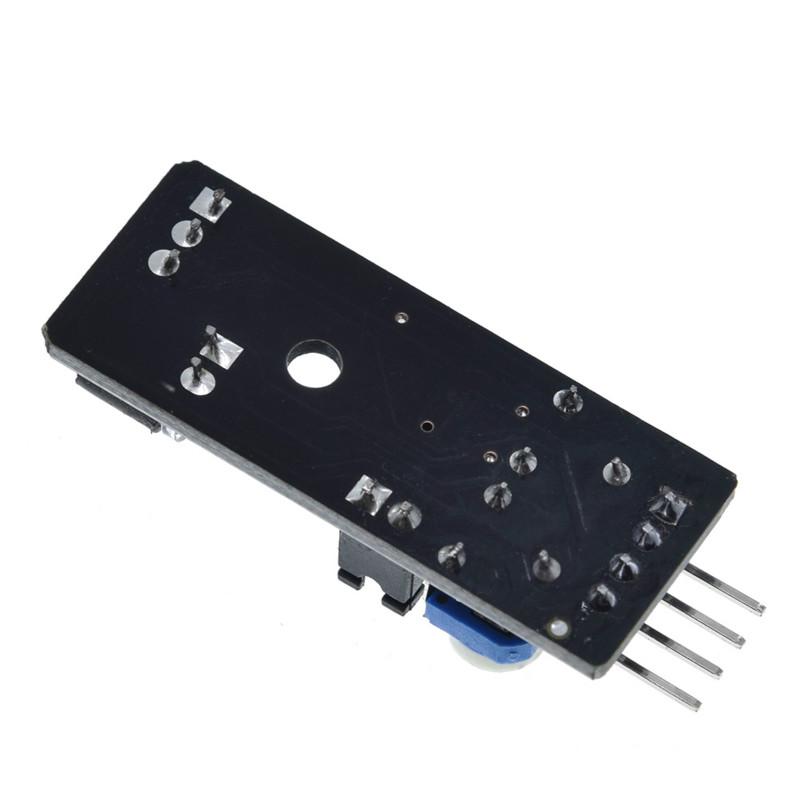

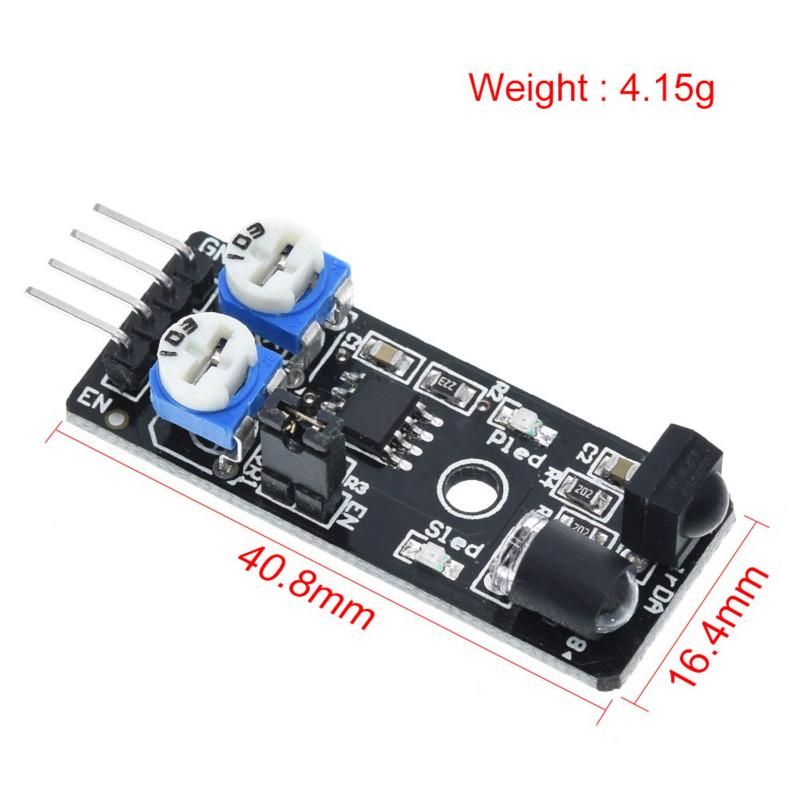

KY-032 4pin IR Infrared Obstacle Avoidance Sensor Module Diy Smart Car Robot KY032 for Arduino

Description:

Object is sensed output 0, output 1 is not sensitive to the time, directly with 3V and 5V microcontroller IO port connected.

Sensing distance 2-40 cm, distance, good anti-jamming capability. (Note: The infrared sensor can not detect all objects get the same distance, objects of different colors of light reflectance of different objects closer darker black shorter distance detected, the sensor 2-40 cm is measured against the white wall of)

Speed, suitable for smart car obstacle avoidance, black and white line tracking, anti-drop, product counters, cutting lines, liquid level detection.

This sensor is made with black and white lines tracing the car ran without black line on white paper, available in concrete The yellow complex environment such as the black line patrol track. As long as the black line around the slightly lighter color than black can, eliminating the traditional m...
