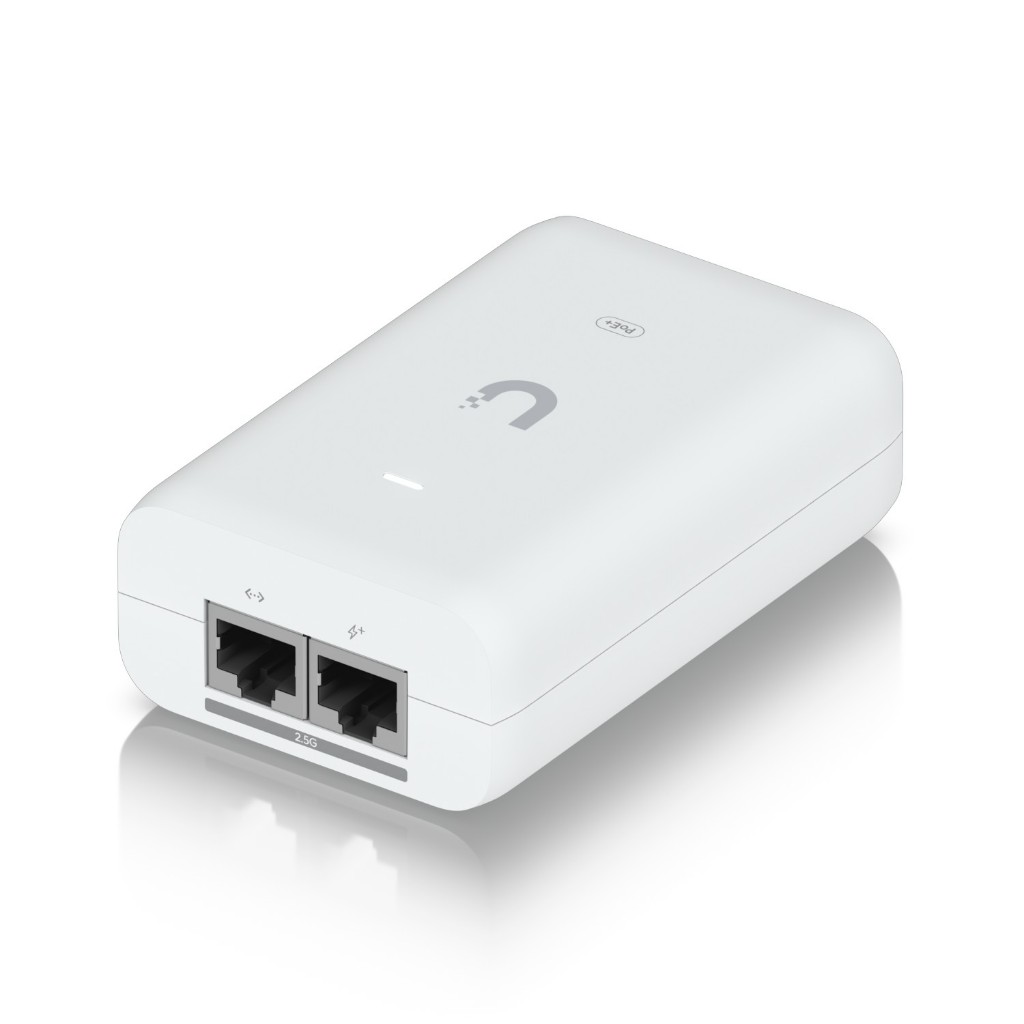

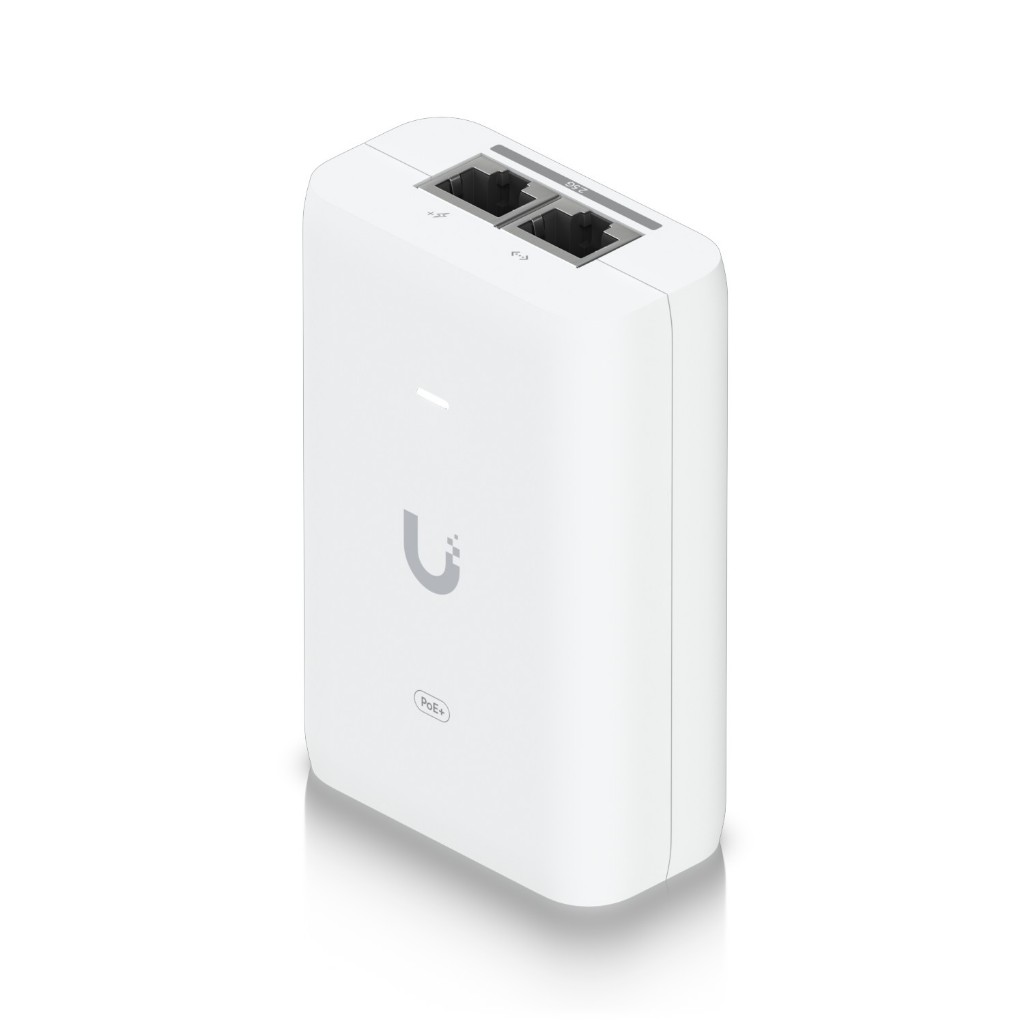

Ubiquiti UniFi 2.5G PoE+ Adapter (30W) รุ่น UACC-PoE+-2.5G

✅PoE+ up to 30W IEEE802.3at

✅Support U7-Lite U7-ProU7-Outdoor U7-Pro-Max U7-Pro-WallU7-Pro-OutdoorU6-Enterprise- and other PoE+ devices

✅มีไฟ LED สำหรับการตรวจสอบสถานะ

✅อุปกรณ์ PoE Injector แบบ 2.5 Gigabit

UACC-PoE+-2.5G

2.5G PoE+ Adapter (30W)

Compatibility:

U7-Lite, U7-Pro-Max, U7-Outdoor, U7-Pro-Wall, U7-IW, U7-Pro

Overview

Dimensions

93 x 62 x 35 mm (3.7 x 2.4 x 1.4")

Weight

156 g (5.5 oz)

Output Voltage

48V DC @ 0.65A

Rated Voltage

100—240V AC @ 50/60Hz

Gigabit LAN Port

✓

2-pair Powering

Pins 4, 5 (+) and 7, 8 (-)

Clamping Protection

11V Data, 60V power

Data In / PoE

RJ45 Shielded Socket

Input Current

0.75A Max.

Inrush Current

<150A peak @ 230V AC

Efficiency

>87%

Switching Frequency

65 kHz Max.

Output Ripple

1% Max.

Line Regulation

≤ 1%

Load Regulation

≤ 3%

Max. Surge Discharge

1500A (8/20 μs) power

Peak Pulse Current

36A (10/1000 μs) data

Response Time

<1 ns

Shunt Capacitance

<5 pF data

Surge Protection

Difference and common mode

Ambient Storage Temperature

-30 to 70°C (-22 to...
