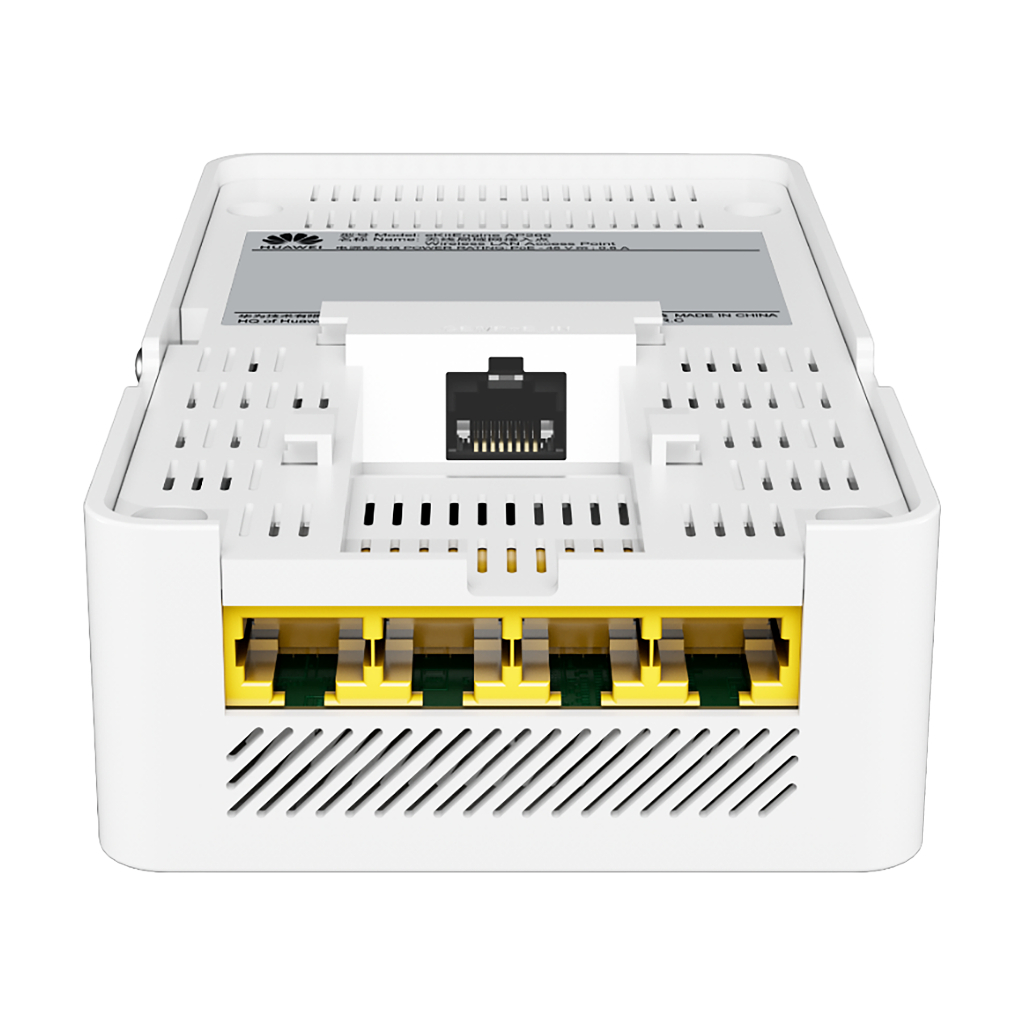

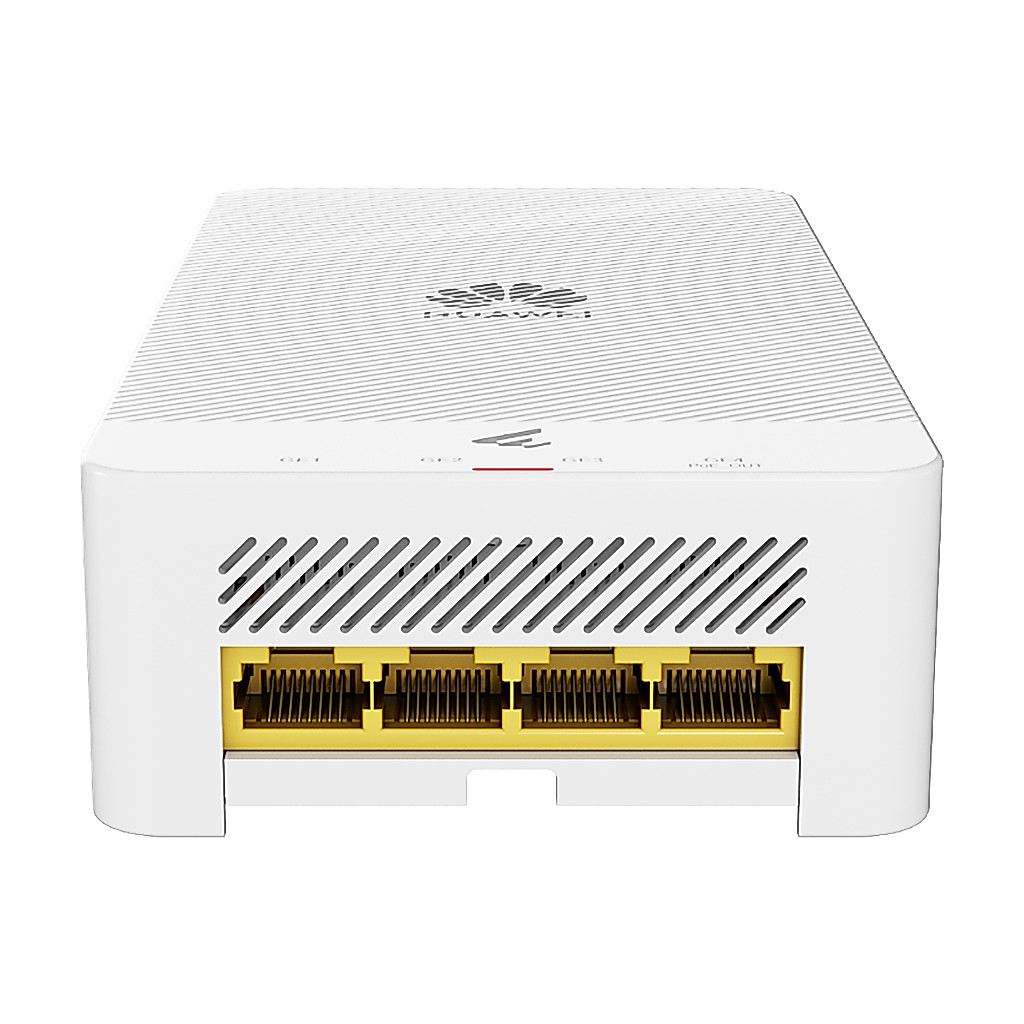

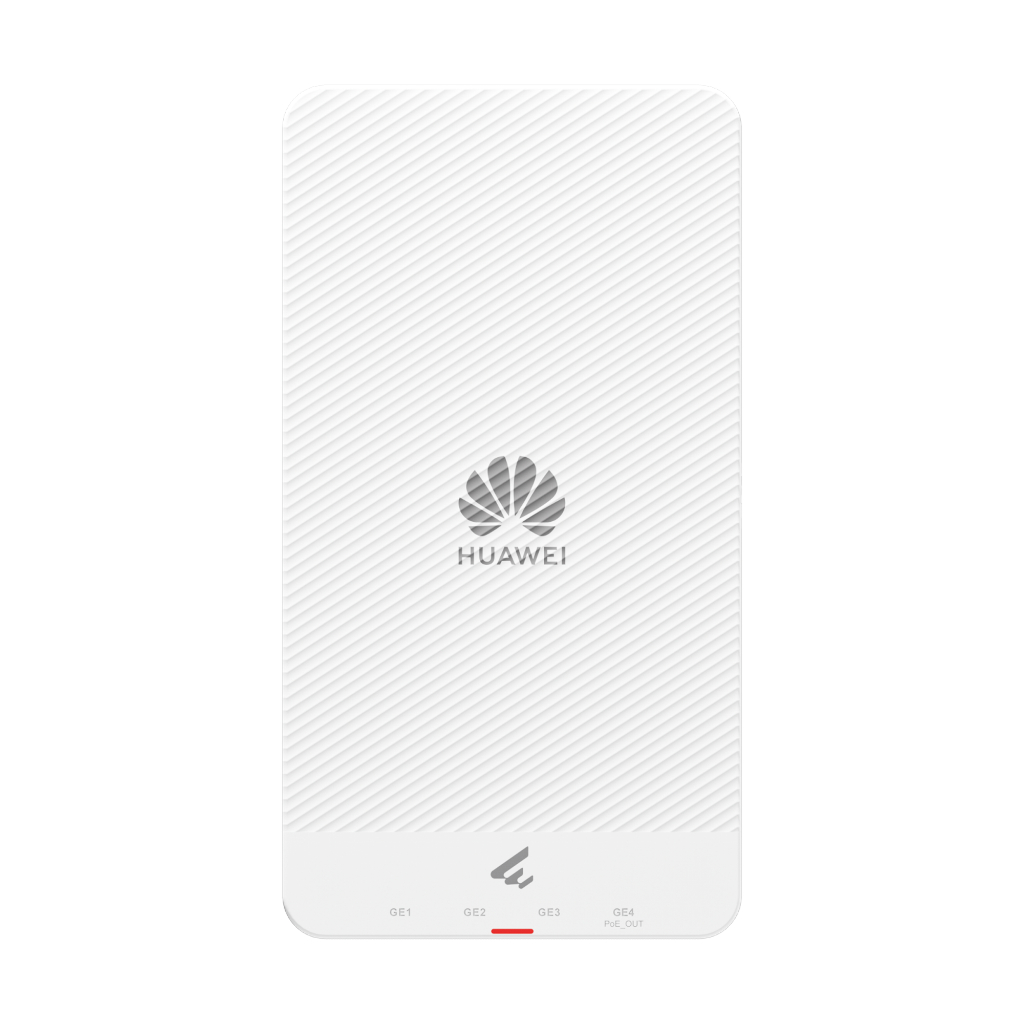

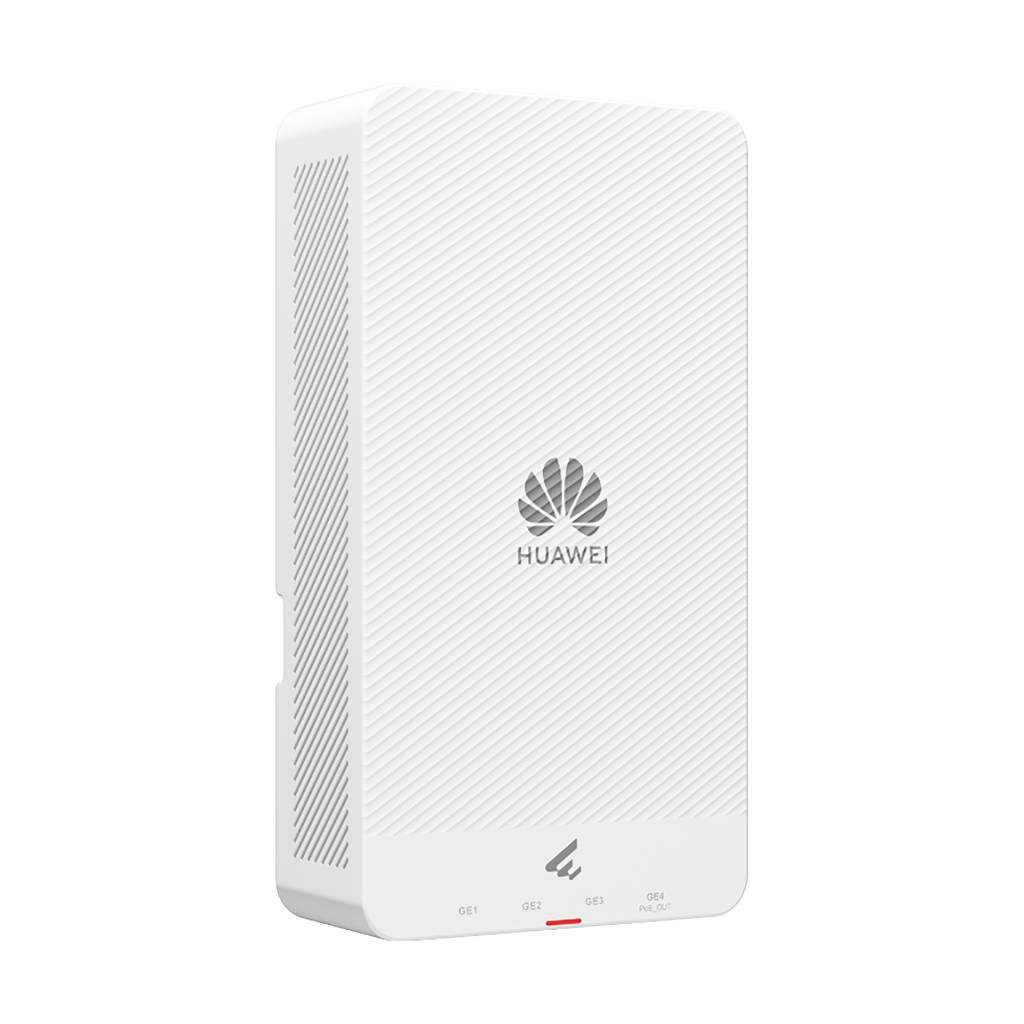

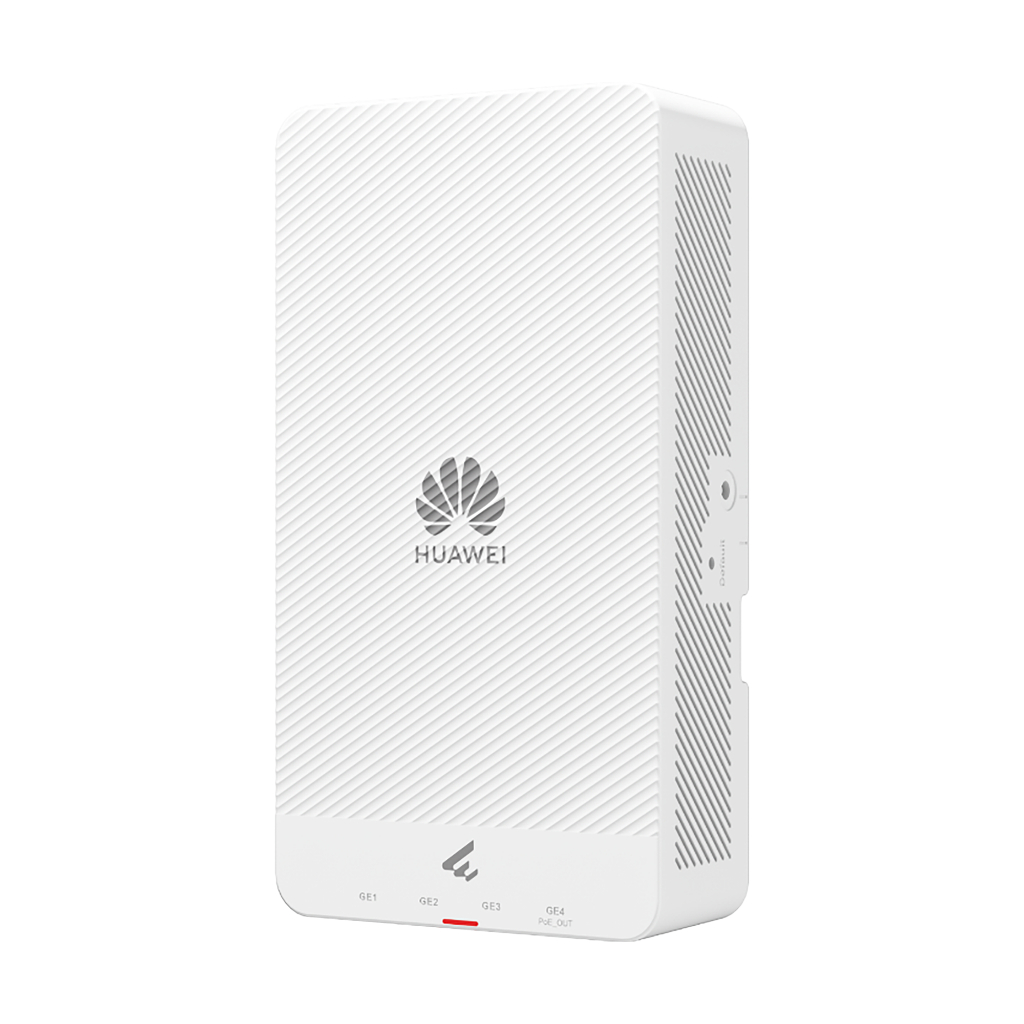

Huawei eKitEngine AP266 (AP266) Wi-Fi 6 Wall plate Access Point

Wi-Fi standard

• 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax

Installation Type

• Desk,Wall,Ceiling (Gypsum Board),Junction Box (86 mm/1-Gang 120 mm/Octagonal)

Optimal Signal Distance (m)

• 20

Max Number of Access Users

• 128

Recommended Number of Access Users

• 64

Device Rate

• 2.975 Gbps

Power supply mode

• PoE

Service port surge protection

• PoE ports: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B Non-PoE ports: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B

Maximum PoE output power [W]

• 15 W

Maximum number of physical ports on the entire device

• GE (RJ45) x 5, 10M/100M/1000M auto-sensing

Radio number

• 2

Maximum channel bandwidth [MHz]

• Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz

Maximum transmit power

• 2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power)

MIMO spatial streams

• Radio 0 (2.4 GHz)...
